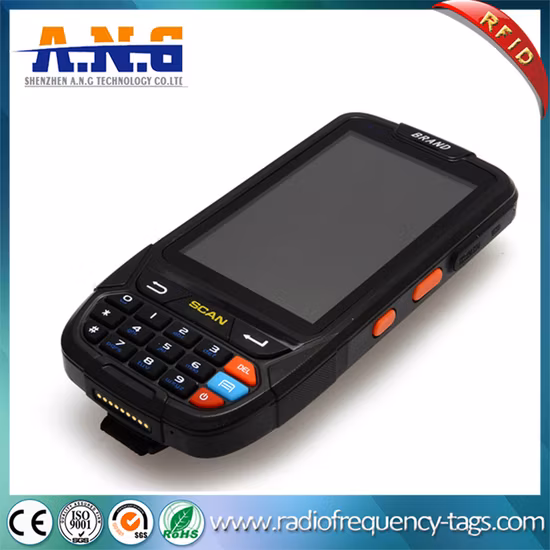

High Configuration High Performance 1d/2D Scanner Mobile RFID Reader
High configuration high performance 1D/2D scanner mobile rfid reader High-speed operation performance:With Android 7.0 o
Description
Basic Info.
| Model NO. | AG-HH02 |
| Specification | 172mm(L) X 80mm(W) X 27mm(D) |
| Trademark | A. N. G Tech |
| Origin | Shenzhen |
| HS Code | 8471900090 |
| Production Capacity | 10000 |
Product Description
High configuration high performance 1D/2D scanner mobile rfid readerHigh-speed operation performance:With Android 7.0 operating system, matching 64 bit quad core 1.3GHz high speed processor with prefect compatibility and computing capability, high-speed operating efficiency is suitable for strict application requirement.1. Excellent identification ability :Fully support 1D and 2D barcode scanning with ultra-strong decoding capability and quick identification ability, easy read the damaged and bend low quality code.2. Convenient appearance design:Slim and ergonomics design, it is convenient and comfortable for holding and carrying. 5.0 inch IPS (720x1280) Work even with water or Gloves.3. Abundant means of data transportation(option) 2G,3G,4G,Wifi,Bluetooth,433M LoRa,ZigBee,etc.4. Industrial grade durability:IP67 industrial grade, solid and light body can bear the height of 1.2m dropping and 1000 times tumbled within the scope of 0.5m.Waterproof,dustproof provide long time using without fatiguet. 5. HD Camera:Postposition 8 mega pixel autofocus camera, is convenient for client to collect all kind of images and video.6. Multiple extensionsSupport GPS , AGPS and Beidou compass navigation.7. Always-available wireless connection:Supports 802.11 a/b/g/n full-band wireless communications and maintains real-time connection with the system to ensure high efficient operation.
| Structural Parameter | |
| Dimensions | 172mm(L) X 80mm(W) X 27mm(D) |
| Weight | 500g |
| Display Screen | 5.0 inch IPS 720 * 1280 px with Multi-point touch capactive screen |
| Expand Port | PSAM*2; TF*1; MICRO SIM*1; POGO Pin*1; Micro USB*1 |
| Communication Interface | USB2.0 Device |
| Input Mode | Standard Stylus, Handwriting, touching input or keyboard input |
| Battery Capacity | Rechargeable Li-polymer Battery 3.7V 4800mAh |
| Frequency | 8ohm 1W speaker |
| Key | 13pcs soft silicon key |
| Performance Parameter | |
| OS | Android 7.0 |
| CPU | ARM Cortex-A53 64bit Quad-Core 1.3G |
| RAM | 2G RAM |
| Flash ROM | Standard 16G NAND Flash Storage |
| Micro SD/TF port (Max up to 32G) | |
| Data Communication | |
| WI-FI | Support IEEE802.11 a/b/g/n protocol, it need effective wireless LAN signal cover |
| FDD/TDD-LTE 4G | TDD-LTE (B1/B2/B3/B5/B7/B8/B20),FDD-LTE (B40) |
| WCDMA 3G | B1,B2,B5,B8 |
| GSM 2G | GSM/EDGE/GPRS (850,900,1800,1900MHz) |
| Bluetooth | Support Bluetooth 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m |
| Standard Modules | |
| Camera | 8MP autofocus camera with flash |
| GPS | Support A-GPS |
| Operating Environment | |
| Operating | -20C to 50C |
| Storage Temperature | -25C to 70C |
| Environment Humidity | 5%RH-95%RH(no condensation) |
| Drop Specifications | 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature |
| Roll Specifications | 1000 times/0.5m, roll on 6 sides contact area |
| Sealed Environment | IP66 |
| 1D Laser scanner (OPTIONAL) | |
| CMOS Scanner | HONEYWELL N4313, Minde966 |
| Support bar code type | Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codabar, Interleaved 2 of 5, China Post25, ISBN/ISSN,Code93,UCC/EAN-128,GS1 Databar,HIBC etc |
| 2D CMOS (OPTIONAL) | |
| CMOS Scanner | HONEYWELL N6603, HONEYWELL N3680, NewLand 3096 |
| The Sensor Resolution | 752(level) 480(vertical)pels(gray level) |
| Ambient Light | All dark 9000ft.candles/96900 lux |
| Focus element (VLD) | 655nm 10nm |
| Support bar code type | PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3 |
| LF RFID Reader (Optional) | |
| Frequency | 125kHz, 134kHz (FDX-B / HDX) |
| Protocol | ISO11784/5, ISO18000-2 |
| Range | 3-8cm |
| HF RFID Reader (Optional) | |
| Frequency | 13.56MHz |
| Protocol | ISO14443A/B, ISO15693 |
| Range | 3-8cm |
| UHF RFID Reader(Optional) | |
| Frequency | 840-960MHz |
| Protocol | ISO18000-6B/C, EPC Class1Gen2 |
| Range | 1.5-4m |
| NFC Reader (Optional) | |
| Frequency | 13.56MHz |
| Protocol | ISO/IEC 18092 (ECMA 340) |
| Range | 2-4cm |
| Integrated Printer (Optional) | |
| Effective print width | 58mm |
| Print method | Thermal line printing |
| Print speed | Up to 90mm/sec |
| Resolution | 8 dots/mm(203dpi) |
| Print font | 12x24/ 24x24 |
| Biometric Fingerprint (Optional) | |
| Sensor | TCS2SS |
| Sensor type | Capacitive Sensor |
| Function | Enrollment, compare, deletion etc. |
| Resolution | 508DPI |
| Memory | 1,000 PCS fingerprints |
